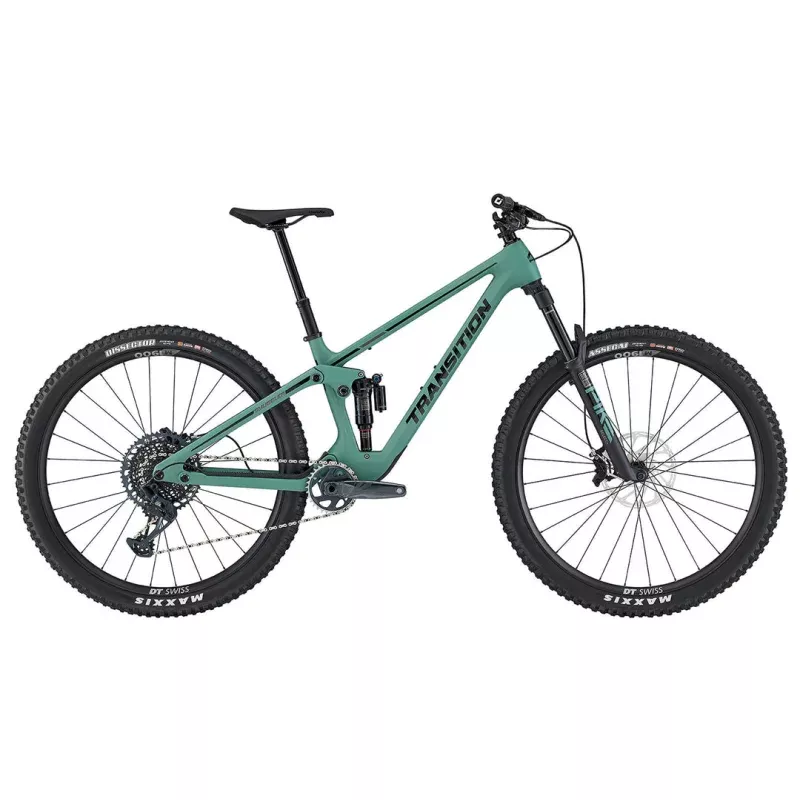

Transition Smuggler Carbon Eagle 90

Description

Like the reliable tool you grab for every job, the Smuggler is the go-to bike for any trail pointed up, down, and all around.With dual 29 inch wheels, 130mm rear and 140mm front travel, the Smuggler may just be the most versatile bike in our lineup. A highly progressive leverage curve and comfortable, confidence-inspiring geo make it eager to keep going mile after mile while remaining surefooted in even the most technical terrain. Sitting squarely between the Spur and Sentinel in travel, geometry, and capability, it shares qualities of both. Inspiring and rewarding to hammer on your favorite singletrack, while never holding you back when the trail gets steep, the Smuggler will make sure you enjoy it all.

ProductTransition Smuggler Carbon Eagle 90 Bike

Model Year2025

Intended Use

Trail

Rider

Unisex

Sizes and Geometry

SM

MD

LG

XL

XXL

View Full Geometry

Wheel Size

29″

Frame Material

Carbon Fiber

Frame Material DetailsCarbon front and rear triangles; molded chainstay, seatstay, and lower down tube protection

Rear Travel

130mm

Rear ShockRockShox Super Deluxe Select+, 210mm length x 50mm stroke

ForkRockShox Pike Select+, 35mm stanchions

Fork Travel140mm

Head Tube DiameterTapered, 1.125″ top, 1.5″ bottom

HeadsetFSA No.42/48/ACB, IS42 upper, IS52 lower

HandlebarANVL Mandrel Alloy, 800mm width, 35mm clamp diameterRise: 20mm (SM), 30mm (MD-XL), 40mm (XXL)

StemANVL Swage, 40mm length, 35mm bar clamp

GripsODI Elite Flow, lock-on

BrakesSRAM Motive Bronze, 4-pistonRotors: SRAM CenterLine, 200mm front, 180mm rear

Brake LeversSRAM Motive Bronze Stealth, tool-free reach adjust

Drivetrain

1x

ShiftersSRAM Eagle 90 Transmission, 12-speed, MMX mounting bracket

Front DerailleurNone

Rear DerailleurSRAM Eagle 90 Transmission, 12-speed

ISCG TabsISCG05

ChainguideNone

CranksSRAM Eagle 90 Transmission Alloy DUB, 165mm length

ChainringsSRAM Eagle 90 Transmission, 30 tooth

Bottom BracketSRAM DUB, 73mm English/BSA threaded

PedalsNone

ChainSRAM GX Eagle Transmission Flattop, 12-speed

CassetteSRAM GX Eagle Transmission XS-1275, 12-speed, 10-52 tooth

RimsDT Swiss M 1900 Spline 30, 30mm inner width

HubsDT Swiss 370, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with Ratchet LN freehub and XD driver

SpokesDT Swiss Champion

TiresFront: Maxxis Assegai, 3C MaxxTerra compound, EXO+ casing, 29″ x 2.5″Rear: Maxxis Dissector, 3C MaxxTerra compound, EXO+ casing, 29″ x 2.4″

SaddleSDG Bel-Air V3

SeatpostOneUp dropperDrop: 150mm (SM), 180mm (MD), 210mm (LG), 240mm (XL/XXL)

Seatpost Diameter31.6mm

Seatpost ClampSingle bolt, 37.0mm

Rear Dropout / Hub Dimensions12mm x 148mm (Boost)

Max. Tire Size29″ x 2.4″

Bottle Cage MountsOne inside front triangle, plus accessory mounts under top tube

ColorsJuniper, Slab Grey

WarrantyLifetime frame

Weight

MiscellaneousGiddyUp four-bar Horst-link rear suspension design Rear travel can be increased to 140mm with longer-stroke (55mm) shock Internal cable routing with guide tubes inside frameSRAM UDH (Universal Derailleur Hanger) Frame weight, size MD with shock: 6.6 lbs (3.00 kg) Includes tubeless valves and sealant
